Motivation#

• How to find unknown parameters of clusters in unsupervised learning?
• Which cluster does each data belong to?

K- Means Algorithm#

Non-probabilistic, 100% assign to that single cluster

• Given:
  • data set $\{ x_1, ...x_N \}$
  • number of clusters $K$
• Find:
  • $K$ cluster centers $\{ \mu_1, ..., \mu_K \}$
  • assign each data $x$ to a cluster center

1-of-K coding:#

• for each data $x_n$, $r_{nk} \in {0, 1} \ s.t \sum_K r_{nk} = 1$
  • if data $x_n$ is in cluster $k$, then $r_{nk} = 1$, otherwise $0$.
  • Hard assignment
  • each data is assigned to only 1 cluster
• goal is to minimize $J=\sum_N \sum_K r_{nk} ||x_n-\mu_k||^2 \ \ s.t \sum_k r_{nk}=1$

Algorithm:#

1. Initialization: randomly choose $\{ \mu_k\}$
2. Assignment: fixed $\{ \mu_k\}$, minimize $J$ w.r.t $\{ r_{nk} \}$
   • $argmin_{r_n} \sum_K r_{nk} ||x_n - \mu_k||^2 \ \ s.t \sum_k r_{nk} = 1$
3. Update: fixed $\{ r_{nk} \}$, minimize $J$ w.r.t $\{ \mu_k\}$
   • $\frac {\partial J}{\partial \mu_k} = 2 \sum_N r_{nk} (x_n - \mu_k) = 0$
   • $\mu_k = \frac {\sum_N r_{nk} x_n}{\sum_N r_{nk}}$ (mean of all points assigned to cluster $k$)

• Repeat step 2 and 3 until converge

Can we use probability to assign? (Soft assignment)

Probabilistic Approach#

Gaussian Mixture Model#

• linear superposition of multiple Gaussians
• probability distribution:
  • $p(x) = \sum_K \pi_K N(x| \mu_K, \sum_K)$ ($K$ Gaussians)
    • $\mu_K$: mean
    • $\sum_K$: covariance
    • $\sum_K \pi_K = 1$: mixing coefficient (weight of each Gaussians in the model)
  • 1-of-K representation: $Z_K = 1 \Rightarrow Z_{j \neq k} = 0$
    • assignment of $x$ to $k^{th}$ Gaussian
    • $Z_K \in \{ 0, 1 \}, \ \sum_K Z_K = 1$
  • $p(z)$ is categorical distribution
    • $p(z) \ \prod_K \pi_K^{Z_k} = cat_Z[\pi]$
      • if $Z_k = 1$ ($Z$ is in $k^{th}$ Gaussian), $\pi_K^{Z_k} = \pi_K, \ 0$ otherwise
      • $0 \leq \pi_k \leq 1, \sum_K \pi_K = 1$
  • probability of $x$ belonging to each distribution
    • $p(x | z_k = 1) = N(x | \mu_k, \sum_k)$
      $\Rightarrow p(x|Z) = \prod_K N(x | \mu_k, \sum_k)^{Z_k}$
    • $p(x,z) = p(z)p(x|z)$
      $\Rightarrow p(x) = \sum_K p(z)p(x|z) = \sum_K \prod_K \pi_K^{Z_k} N(x| \mu_K, \sum_K)^{Z_k} = \sum_K \pi_K N(x| \mu_K, \sum_K)$

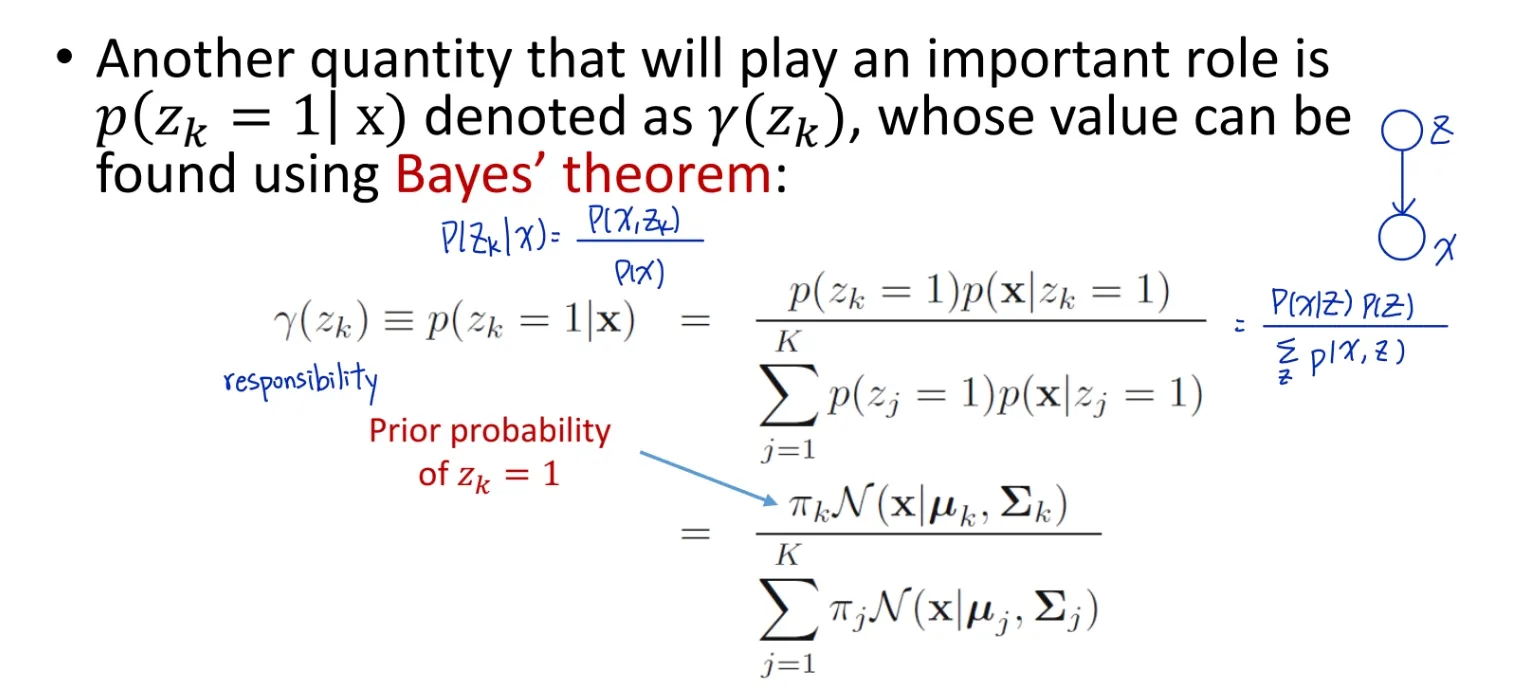

• Responsibility

Maximum log-likelihood#

• we try to get the partial derivative w.r.t $\mu_k, \sum_k, \pi_k$
• $argmax_\theta ln p(x_1, ..., x_N| \theta) = argmax_{\pi, \nu, \sum} \sum_N ln \sum_K \pi_K N(x_n | \mu_k, \sum_k)$, $\sum$ is inside $ln \ \Rightarrow$ no closed-form

EM for Gaussian Mixtures#

• $\theta = {\pi_k, \mu_k, \sum_k}$

1. Initialize $\pi_k, \mu_k, \sum_k$
2. Expectation step: evaluate responsibilies $r(Z)$
   • $r(Z_{nk}) = \frac {\pi_k N(x_n | \mu_k, \sum_k)}{\sum_k \pi_k N(x_n | \mu_k, \sum_k)}$
3. Maximization step: update $\pi_k, \mu_k, \sum_k$
   • $\mu_k = \frac {1}{N_k} \sum_N r(Z_{nk})x_n$
   • $\sum_k = \frac {1}{N_k} \sum_N r(Z_{nk}) (x_n - \mu_k)(x_n - \mu_k)^T$
   • $\pi_k = \frac {N_k}{N}$
   • where $N_k = \sum_N r(Z_{nk})$
4. Evaluate log-likelihood
   • $ln \ p(x| \mu, \sum, \pi) = \sum_N ln (\sum_K \pi_K N(x_n | \mu_n, \sum_n))$
   • check for convergence

• Can run K_Means before initializing for EM algorithm

General EM algorithm#

• Goal: find maximum likelihood solution for models with latent variables
  • $ln \ p(x|\theta) = ln (\sum_Z p(x,Z| \theta))$
  • no closed form
• we don’t have complete $\{ X,Z \}$, we can consider maximize the expected value of $p(x, z|\theta)$ w.r.t $p(z|x, \theta)$

1. Initialize $\mu, \sum, \pi$
2. Expectation step
   • Expectation $Q(\theta, \theta_{old}) = \sum_Z p(z| x, \theta_{old}) ln \ p(x, z| \theta) = e_{z | x, \theta_{old}}[ln \ p(x, z | \theta)]$
3. Mazimization step
   • $\theta_{new} = argmax_\theta Q(\theta, \theta_{old}) = argmax_\theta \sum_Z p(Z|x, \theta_{old}) ln \ p(x, Z| theta)$
   • log is now insize $\sum \ \Rightarrow$ closed form
4. Check for convergence of either log likelihood or parameter value
   • $\theta_{old} \leftarrow \theta_{new}$

Theory behind EM algorithm#

• maximize $ln \ p(x| \theta) = ln \sum_Z p(x, z| \theta)$ is difficult, we can maximize its lower bound $L(q, \theta)$ instead
• $ln p(x| \theta) = L(q, \theta) + KL (q || p)$ where

  • $L(q, \theta) = \sum_Z q(z) ln \frac {p(x,z |theta)}{q(z)}$

  • $KL(q || p) = - \sum_Z q(Z) ln \frac {p(z|x, \theta)}{q(z)} \geq 0$
