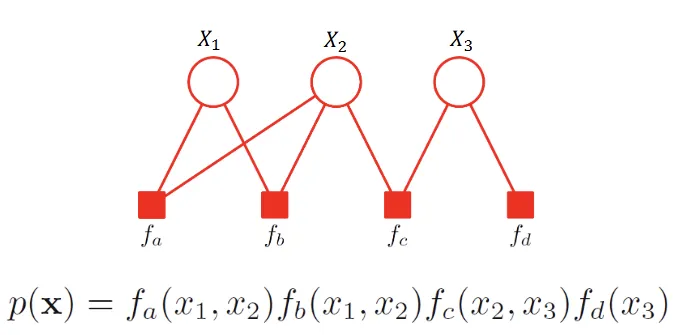

Factor Graph#

• to explicitedly show details of factorization
• Variable + Factor nodes
• $G(V, F, \epsilon)$
  • $V$: random variable (circle)
  • $F$: factors (square)
  • $\epsilon$: undirected edges, factor to all variable it depends on
• $p(x) = \prod_s f_s(x_s)$

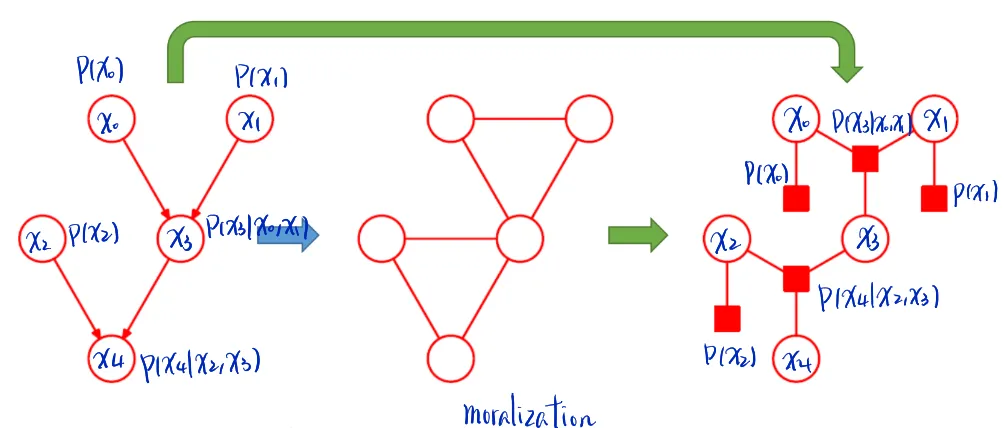

DGM to factor graph:#

• parent-child relationship $p(x_i|x_{\pi_i}) \rightarrow f_s(x_s)$

UGM to factor graph:#

• $\frac {1}{Z(\theta)} \prod_c 𝜓_c(y_c| \theta_c)$
  • maximum clique $𝜓_c \rightarrow f_s(x_s)$
  • can remove $\frac {1}{Z(\theta)}$ since can define it over empty set of variables

NOTE

factor graph representation is not unique

• DGM / UGM with local cycles can become tree
  • therefore can run sum-product algorithm

Sum-Product algorithm on factor graph#

• Goal: compute all singleton marginal probability $p(x_i)$

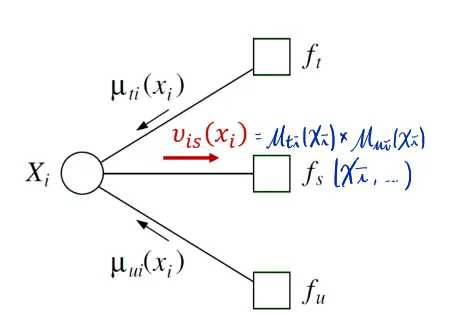

• Message:
  • $v$: variable to factor node
    • $V_{is}(x_i) = \prod_{t \in N(i)-s} \mu_{ti{ (x_i)}}$
    • no marginalization

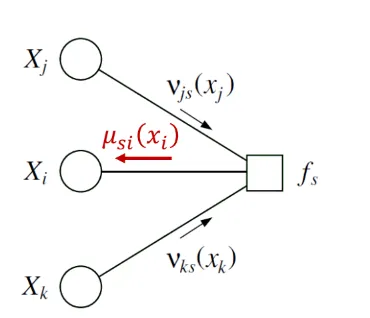

  • $\mu$: factor to variable node
    • $\mu_{si}(x_i) = \sum_{x_{N(s)-i}} f_s(x_{N(s)}) \prod_{j \in N(s)-i} v_{js}(x_j)$
    • should contain only $x_i$, marginaliza away all other nodes
  • message from leaf node (Initialization)
    • $v_{is}(x_i)=1$
    • $\mu_{si}(x_i) = f_s(x_s)$

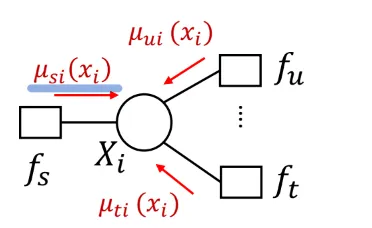

• Marginal probability
  • $p(x_i) \propto \prod_{s \in N(i)} \mu_{si}(x_i) = V_{is}(x_i)\mu_{si}(x_i)$

Maximum a Posterior (MAP) problem#

• Goal: to maximize over all sets of random variables
  • find the maximal probability
  • find the configuration
• $max_x p(x|\bar x_E) = max_x \frac {p(x, \bar x_E)}{p(\bar x_E)}$ ($p(\bar x_E)$ can be removed)
  $= max_x p(x|\bar x_E) = max_x p(x) \delta(x_E, \bar x_E) \\ = max_x p(x)^E$

CAUTION

Underflow problem: prodects of $0.x \rightarrow 0$

• Solution: log scale, $max_x p(x)^E = max_x log p(x)^E$
  $\times \Rightarrow +$ (becomes Max-Sum algorithm)

Max-Product Algorithm#

Or Max-Sum algorithm if using log scale

• similar to Sum-Product algorithm

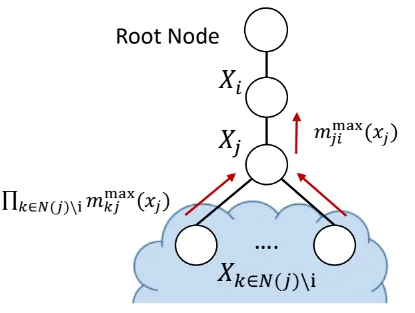

• inward message
  • $m_{ji}^{max}(x_i) = max_{x_j}(𝜓^E(x_j)𝜓(x_i,x_j) \prod_{k \in {N(j)-i}} m_{kj}^{max}(x_j))$
• $max_x p^E(x) = max_{x_i} (𝜓^E(x_f) \prod_{w \in N(f)} m_{ef}^{max} (x_f))$

Getting the configurations#

• also record max configuration per inward message
• track the configurations from root as outward process

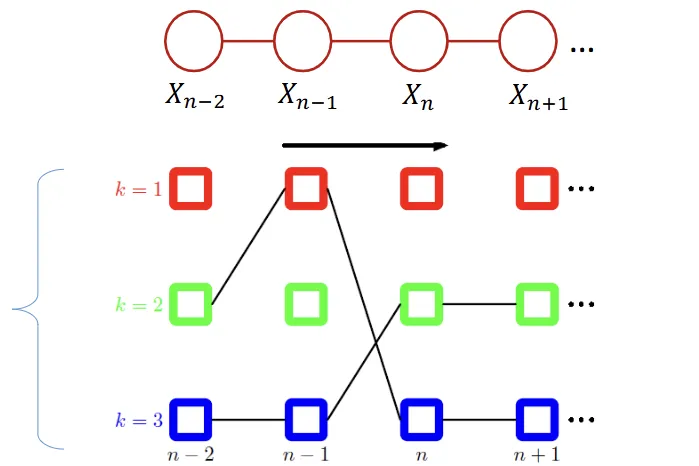

• Trellis diagram

Junction Tree (Clique Tree)#

• Probability distributions of a loopy undirected graph can be re-parameterizes as trees $\Rightarrow$ can perform Sum-Product algorithm
• Cluster graph $\overset{no\ cycle}{\rightarrow}$ Cluster tree $\overset{running\ intersection\ property}{\rightarrow}$ Junction tree
  • Cluster graph
    • cluster nodes $C_i \subset \{ x_1, ... x_n\}$ edges between $C_i, C_j\ \Rightarrow$ sepset (intersection) $S_{ij} = C_i \cap C_j$
  • Family preservation: each potential $𝜓_k$ is assigned to a cluster $C_{\alpha (k)}$ such that $Scope[𝜓_k] \subset C_{\alpha (k)}$
  • Cluster potential: $\phi_j (C_j) = \prod_{𝜓: \alpha(𝜓)=j}𝜓$
    • ensure each $𝜓$ is used once and only once
• Running intersection property
  • for each pair of clusters $C_i, C_j$ and $X \in C_i \cap C_j$, there exists an unique path between $C_i, C_j$ fpr which all clusters and sepset contain $X$
  • a.k.a for any $X$, the set of clusters & sepsets containing $X$ form a tree.
  • If fulfilled by cluster tree, it is a junction tree

what can junstion tree do?

• Marginal probability on junction tree
  1. choose root clique
  2. inward message
  3. outward message
  • messages: $\delta_{i \rightarrow j} = \sum_{C_i - S_{ij}} \phi_i \prod_{k \in N(x)-j} \delta_{k \rightarrow i}$
    • $C_i - S_{ij}$: random variable that are in $C_i$ but not in $C_j$, need to marginalize out
    • $S_{ij}$: common random variables in both $C_i$ & $C_j$
  • $p(C_i) \propto \phi_i \prod_{k \in N(i)} \delta_{k \rightarrow i}$

Constructing Junction tree#

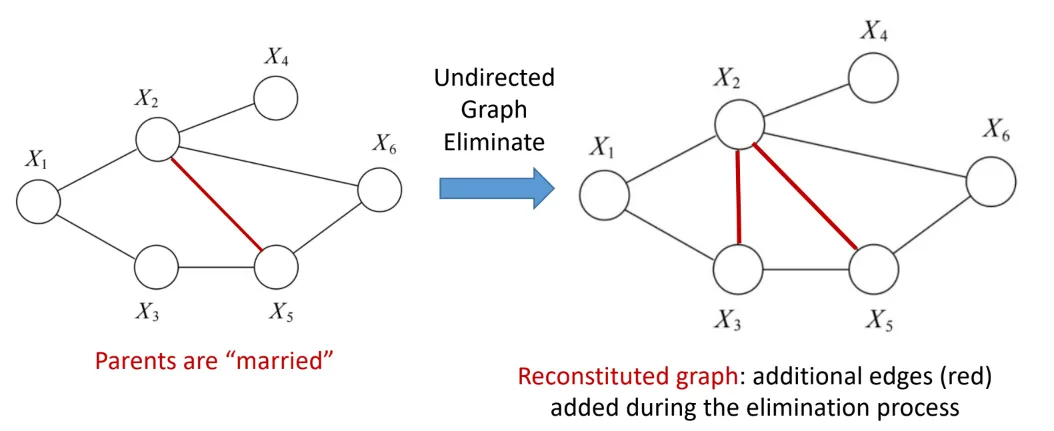

1. Triangulation: get reconstitution graph

   • DAG to UAG to reconstitution graph

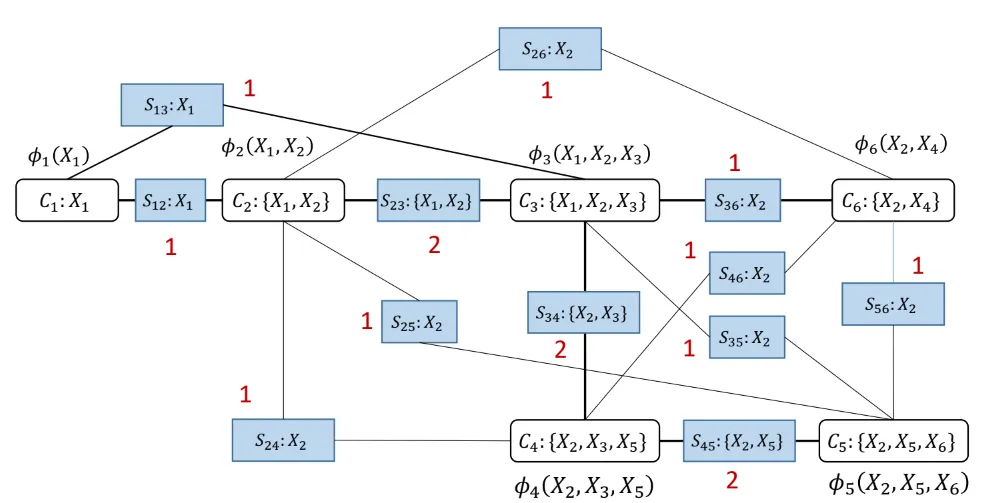

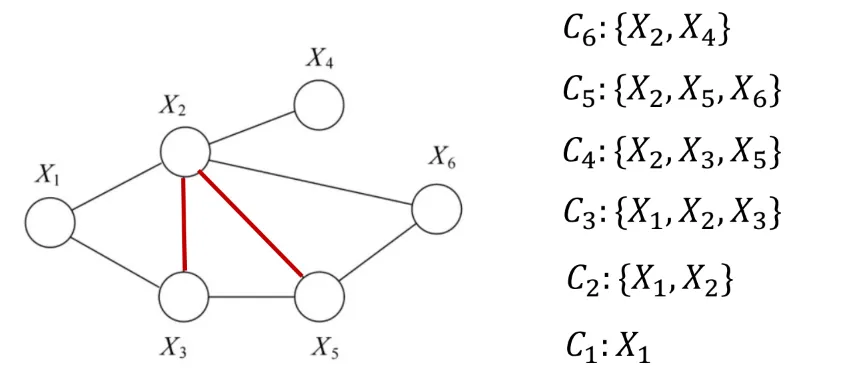

2. Get all clusters and all possible sepsets

3. Assign cluster potentials

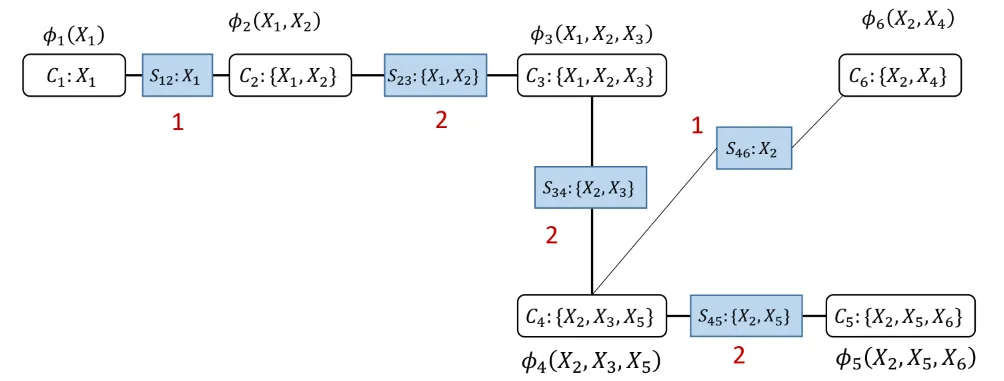

4. Get junction tree

   • find the maximum spanning tree with weight $=$ cardinality of sepsets

   TIP

   A cluster tree is a junction tree only if it is a maximum spanning tree
