• Recover clean image pixels $w=\{w_1, w_2, ..., w_N\}$, given noisy observed data $x=\{x_1, x_2, ...x_N\}$
• we want to:
  1. $p(x|w)$: encourage pixels ($w$) to stay the same label as observation ($x$)
  2. $p(w_i, w_j)$: take the same label as neighbor ($w1, w2$)

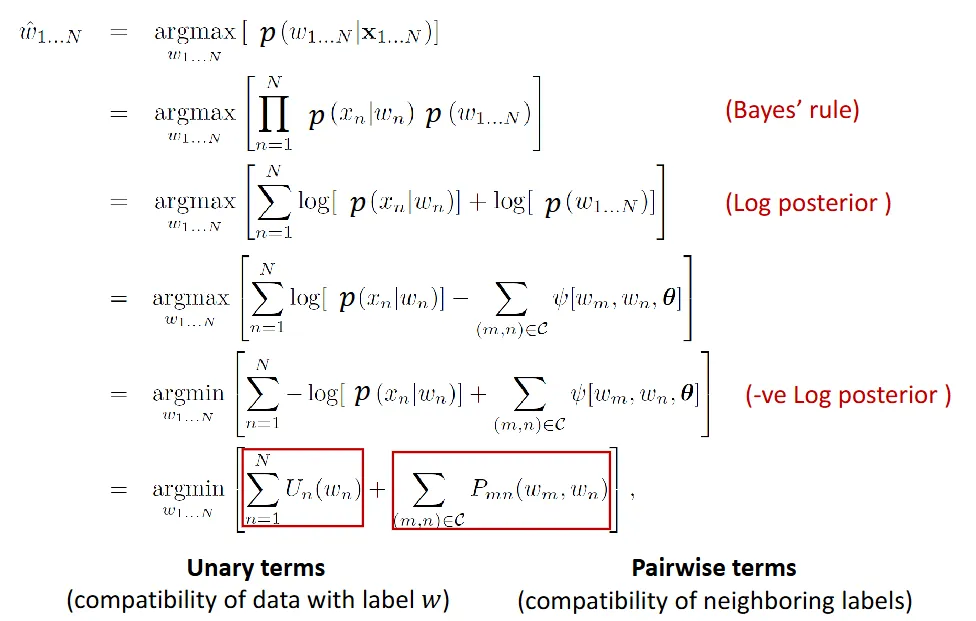

• cost function

Max-flow = Min-cut#

• a directed graph, a source, a sink
• capacity $u(e_{ij}) \geq 0$ of an edge = max flow possible on the edge
• cut: node partition $(S,T)$ on graph
• capacity: sum of weights leaving $S$
• flow: assignment of weights to edges
  • $0 \leq f(w_{ij}) \leq u(e_{ij})$ (capacity)
  • flow leaving $V_i =$ flow entering $V_i$
• Goal: find the flow that maximizes net flow

Observations#

• net flow = flow entering $t$
• value of flow $\leq$ capacity of the cut
• if capacity of the cut $=$ value of the flow, $f$ is max flow, $(S,T)$ is min cut

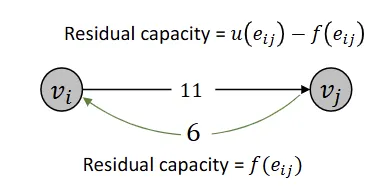

Residual Graph#

• undo flow sent
• augmenting path = path in residual graph
• if augmenting path exist: not a maz flow yet

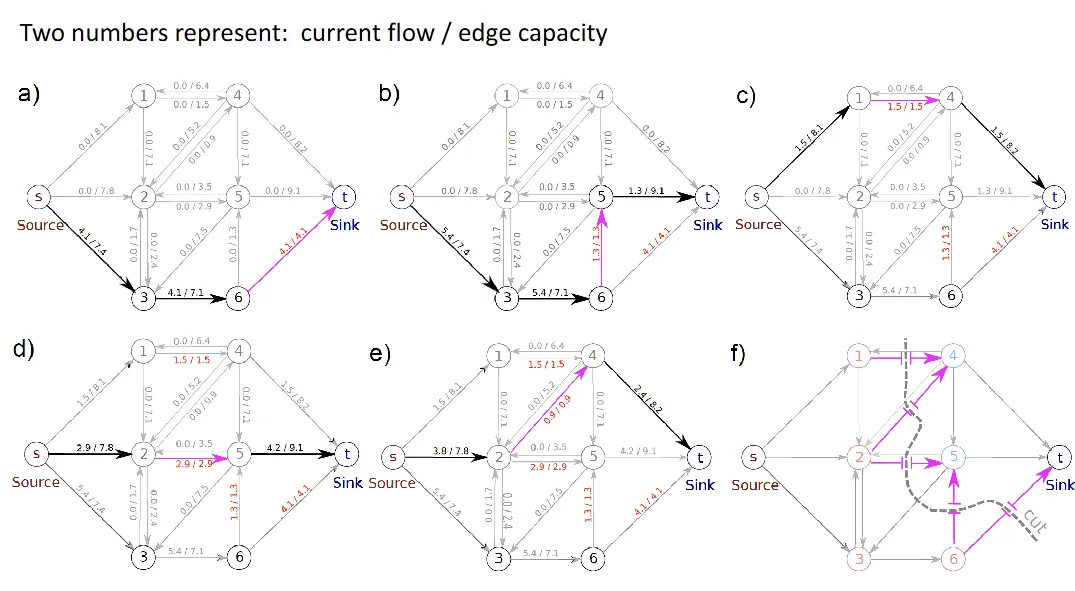

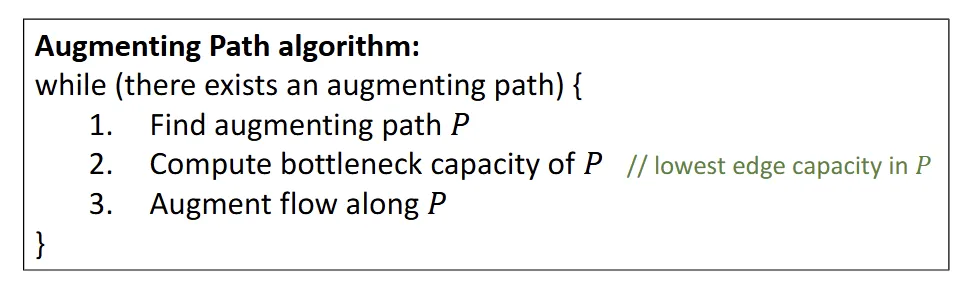

Augmenting Path Algorithm#

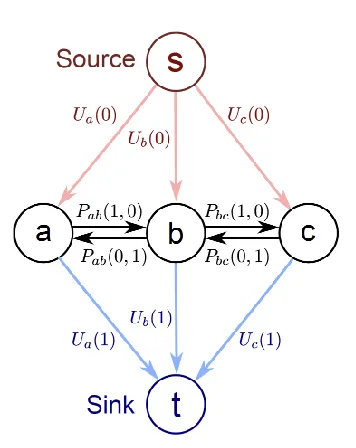

Case 1: Binary MRF#

• Unary costs $U(0), U(1)$ attached to links to source and to sink. Either one or the other is paid
• Pairwise costs $P_{ij}(0,1), P_{ij}(1,0)$ between nodes, either one or the other is paid when $i$ and $j$ takes opposite labels.

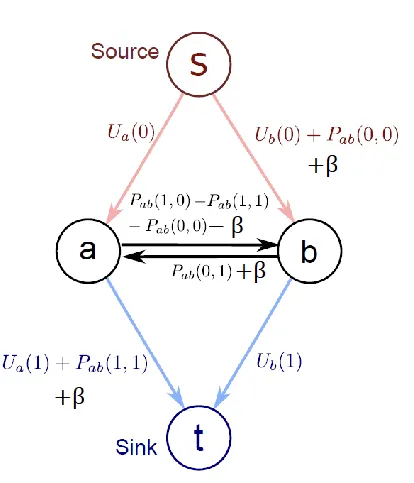

• Reparameterization
  • adjust the edge capacities so every possible solution is $\geq 0$

Submodularity#

• if $\theta_{10} + \theta_{01} - \theta_{11} - \theta_{00} \geq 0$
• solve in polynomial time

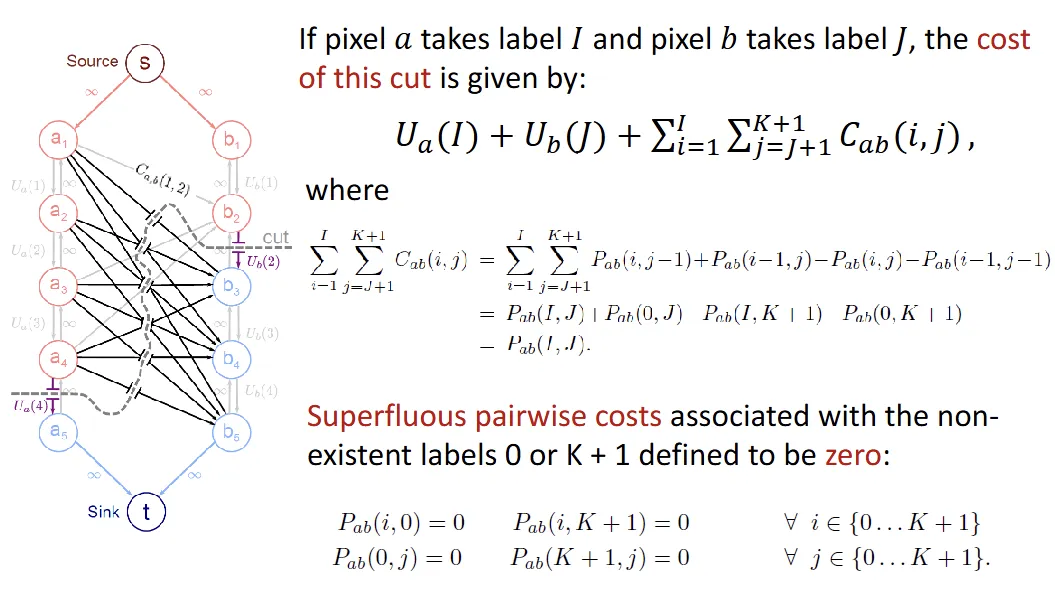

Case 2: Multiple Labels (Submodular)#

• Convex may over-smooth the image

Case 3: Multiple Labels (Non-submodular)#

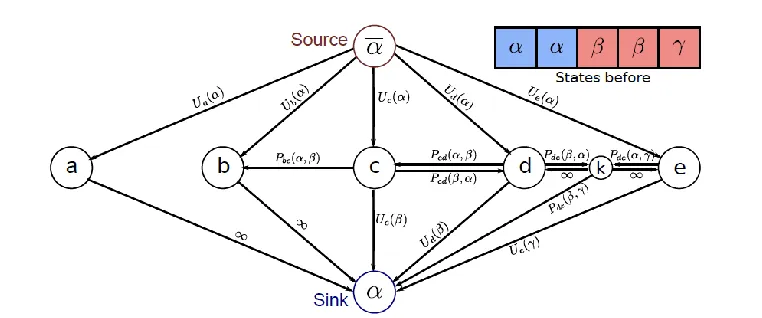

• Alpha-Expansion Algorithm
  • breaks into binary sub-problems
  • each step, choose an $\alpha$ and expend, until no change
  • each vertix is connected to $s$ & $t$
  • structure of graph is dynamix, changes depend on choice of $\alpha$
• 4 possible relationships
  1. $i, j$ have label $\alpha$, pairwise cost=0, only $U_i(\alpha) + U_j(\alpha)$
  2. $i=\alpha, j=\beta$
     • solution may be $\alpha - \alpha$ or $\alpha - \beta \rightarrow P(\alpha, \beta)$ (add new edge)
  3. $i=\beta, j=\beta$
     • solution may be $\alpha - \alpha$, $\beta - \beta$ (no pairwise cost), $\alpha - \beta$ (add $P(\alpha, \beta)$), $\beta - \alpha$ (add $P(\beta, \alpha)$)

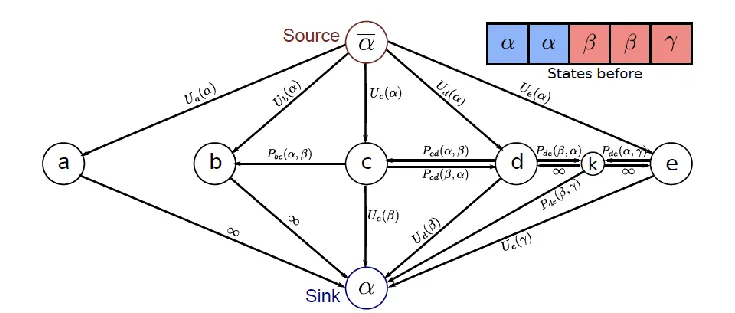

  4. $i=\beta, j=\gamma$
     • solution may be:
       • $\beta - \gamma$ ($P(\beta, \gamma)$, add new edge between $k$ and sink)
       • $\alpha - \gamma$ ($P(\alpha, \gamma)$, add new edge between $k$ and $j$)
       • $\beta - \alpha$ ($P(\beta, \alpha)$, add new edge between $i$ and $k$)
       • $\alpha - \alpha$ (no paiwise cost added)
• triangle inequality must hold
  • $P(\beta, \gamma) = 0 iff \beta = \gamma$
  • $P(\beta, \gamma) = P(\gamma, \beta)$
  • $P(\beta, \gamma) \leq P(\beta, \alpha) + P(\alpha, \gamma)$
